Video surveillance

VIDEO SURVEILLANCE

THE MORE WE SEE, THE MORE CONNECTED WE FEEL.

Our video surveillance application is one more step in total vehicle connectivity.

Video surveillance

Greater safety

The recording of on-board images increases the safety of passengers and property. The feeling of safety increases when it is known that the vehicle is fully monitored, which encourages a person to travel by public transport.

It is a deterrent for those who think about criminal activity against the vehicle and its passengers people.

Smart labelling

Thanks to smart labelling it is not necessary to display hours and hours of recordings to find the most significant events.

The system is able to annotate the relevant events on the video (sudden braking, door opening, panic button, etc.) and then display on the recordings linked to the desired events.

Video surveillance

All in one
Why not have it all in one?

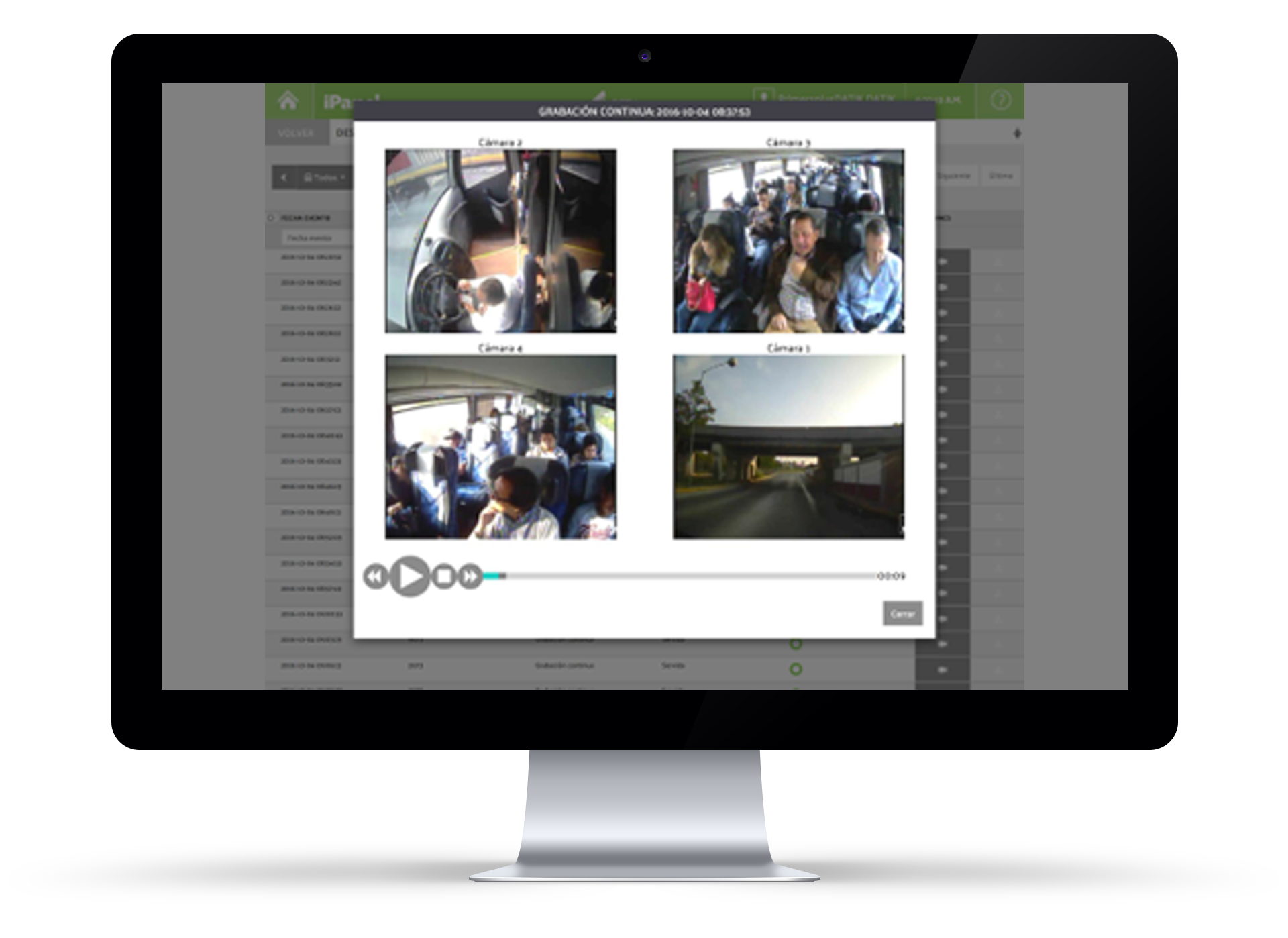

DCBV is Datik's video surveillance equipment. When DCBV is connected to the iPanel you can access to the cameras in real time and can also manage video downloads from the cloud.

DCBV opens a world of possibilities, allowing you to activate all of the iPanel applications. It provides high performance features that are suitable for developing advanced engineering projects. It will help you maximize the investment, optimize the cost and consolidate all services through one single device.

Video surveillance

Functionalities

  • Viewing high-quality images from the driver's console.
  • Viewing low-quality images remotely.
  • Continuous recording of the video and audio of the cameras installed in the vehicle.
  • High-capacity, solid-state removable hard drive, more robust than traditional magnetic disks.
  • The disc can store the recordings of the last 15 or 30 days (depending on capacity selected).
  • Option for setting different video qualities for recordings and remote playback.
  • Once the disc is extracted, the recordings can be viewed using a free player that is in the same extracted disk.
  • Optionally, the recorder can carry a data SIM so that the videos can be uploaded to the cloud remotely.
  • Optionally, the recorder can carry a data SIM so that the videos can be uploaded to the cloud remotely.

Some of our cameras

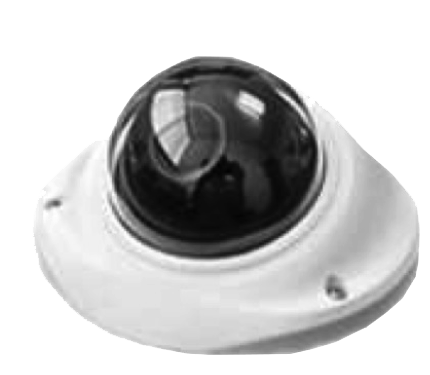

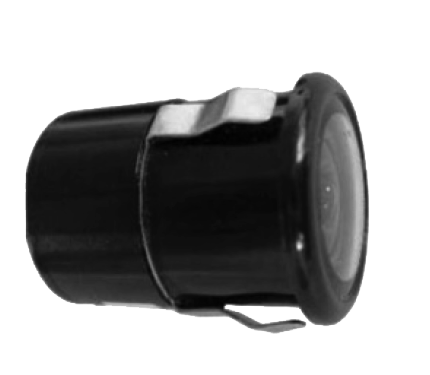

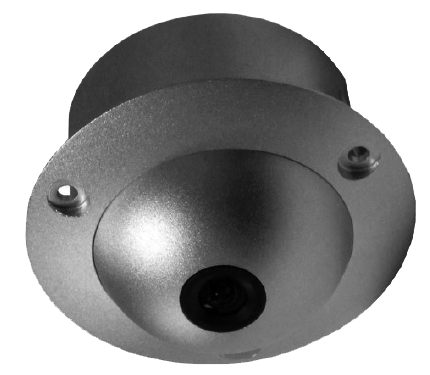

  CC0001ZV-AS CC1033N/CA CC1025/6ED
Application Cab and luggage compartment recording Above access doors Road recording
Sensors 1/3” CMOS/DIS -1/3” CMOS/DIS 1/4”CMOS
Dimensions 120mm(Ø)x62mm (H) 69mm(Ø)x49mm (H) 20mm(Ø)x28mm (H)
Resolution 1000TVL -450TVL 420TVL
  PAL:752(H)x582(V)NTSC:768(H)x494(V) 500(H)x582(V) 720(H)x576(V)
Night vision 0 Lux 0.5Lux 5Lux
IR lighting reach 20m - -
Focal distance 3.6mm 3.6mm 2mm
S/N ratio 52dB 55dB 45dB
Consumption IR On: 36WIR Off: 1,4W 2,4W 0,6W
Operating temp. range 10°C ~ +50°C RH95% Max 10°C ~ +50°C RH95% Max 30ºC ~ +70ºC
Consola Conductor

Driver's console.

Size 7-inch screen (16:9)
Resolution Support 640 x 480 ~ 1920 x 1080 pixels
Luminance 400 nits
View Angle (H/V) H:140 / V:120
Backlight lifetime 20.000 hours
Touch Screen Type 4-wire Resistive
Audio 1 x Audio input jack
Power input DC 12~24V
Chassis material Plastic
Dimension 179.43mm x 129.43mm x 29.5mm
Mounting VESA75 mount
Operating Temp. -30ºC ~ 85ºC (-22~185F)
Storage Temp. -30ºC ~ 85ºC (-22~185F)
Safety CE, FCC, E13, RoHS
