Passenger information

PASSENGER INFORMATION

KEEPING THE PASSENGER INFORMED IS A PRIORITY

Multimedia screens at stops and in vehicles, audio announcements or mobile applications. It·s right for passengers to receive detailed information on what is happening.

Passenger information

Your company in the pocket of your passengers

iPanel - Passenger Information mobile application provides the passenger with full information on timetables punctuality and delays and various incidents directly on their mobile phones. The app is compatible with iOS and Android.

The mobile application is also managed from the iPanel - Passenger Information.

The 360 degrees of information to passengers

Datik's solution keeps passengers informed at all times, wherever they are. The mobile application, multimedia panels for stops, LED panels for the exterior of vehicles and interior image and audio announcers inform passengers at all times. All is managed centrally from iPanel - Passenger Information.

Passenger information

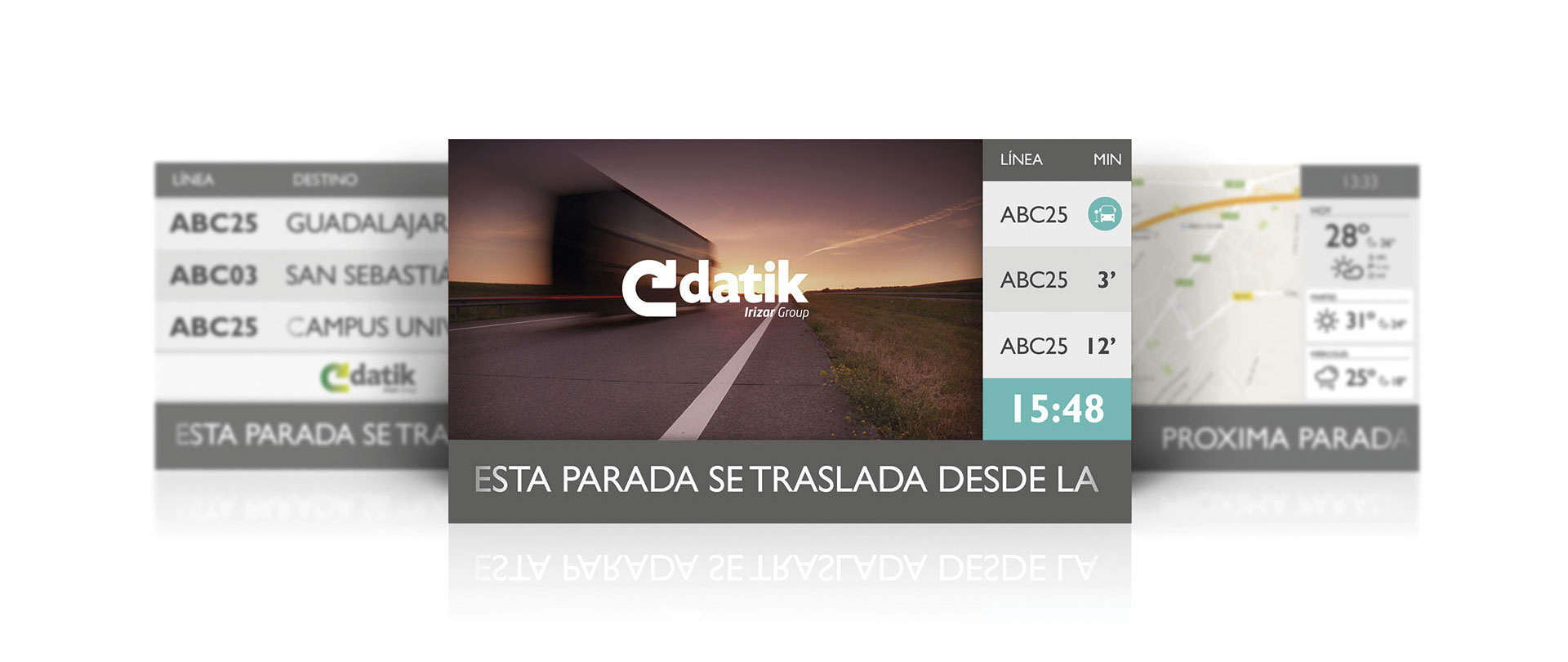

Multimedia Information System at Stops

Datik designs and manufactures the exterior MIS (Multimedia Information System), a latest-generation TFT panel specially designed for exterior use.

The exterior MIS can display punctuality information for the services that are about to arrive at the stop, advertising information, incidents on the line, as well as the weather forecast for the next few hours and days and the forecast at the line destination.

The MIS has a vandal-proof case and glass, a high-resolution, high-contrast TFT panel, assisted ventilation to withstand the intense heat in some parts of the world.

Multimedia information inside the vehicle

Vehicles equipped with the on-board MIS can offer the passenger the option of viewing service information (timetable, next stop, punctuality, connections with other services, etc.), advertising information (random or geolocalized) and corporate information about the company or public body operating the line.

The on-board MIS and its content is managed flexibly and easily from iPanel - Information to Passengers. It means that the operator can create carousels and assign operating rules based on proximity to established stops, business proximity, or set time intervals

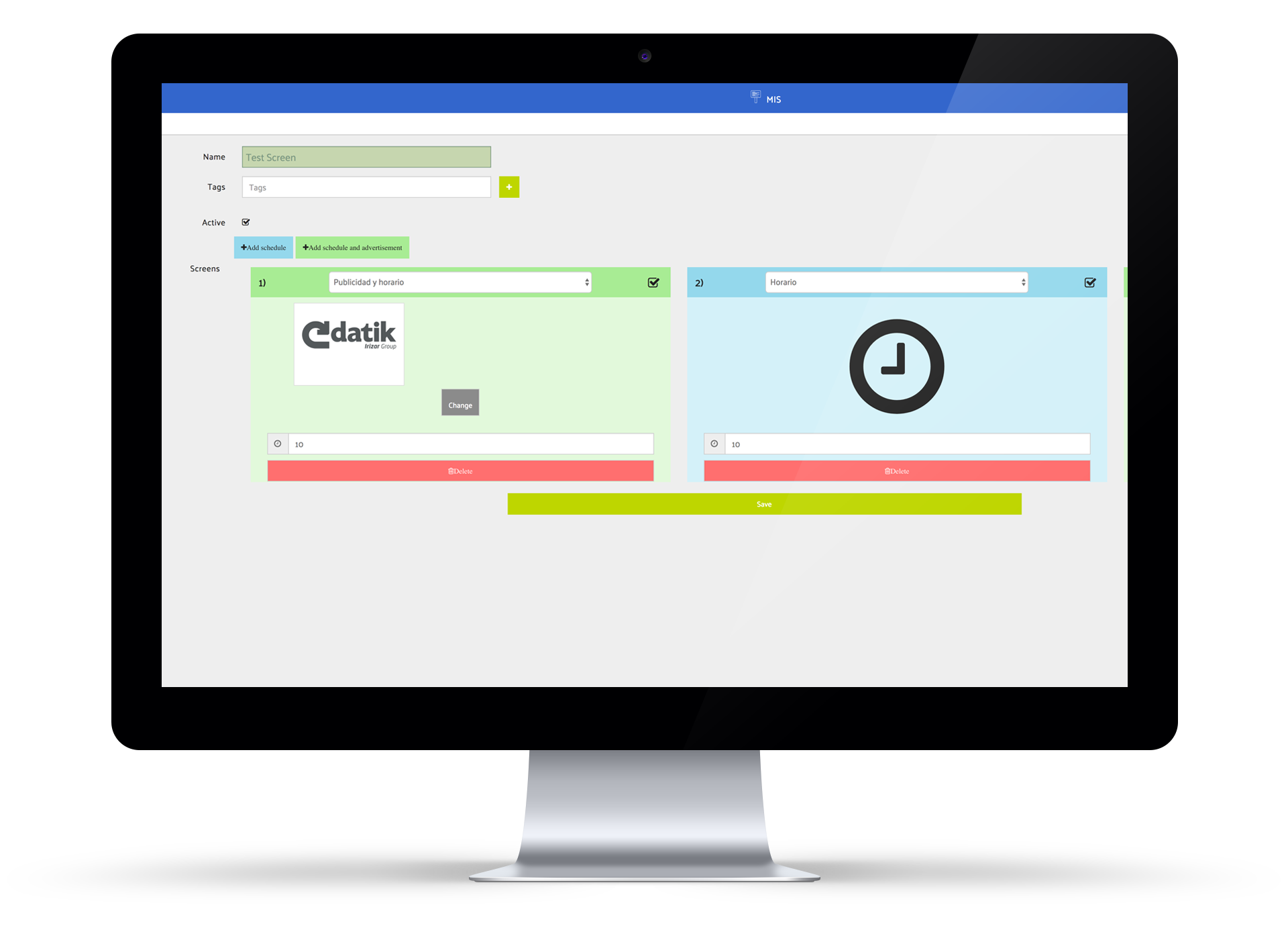

Centralized management from iPanel.

The iPanel - Passenger Information provides centralized management of the different channels of communication with passengers. It is an effective and very intuitive tool. Once all the devices are configured, it works autonomously, by deciding the content to be displayed and sends the information to the appropriate devices.

Passenger information

DCBL

DCBLD

DCBV

technical information


DCBL
DCBL
DCBLD
DCBLD
DCBV
DCBV
Human-machine interface - Integrated 7 "screen VGA connector for external 7 "driver console
HDMI output Yes Yes Yes, for embedded annunciator system
Audio output - - For audio announcer
Video and audio - - 4 video and 4 audio channels
Removable storage - - 250GB or 500GB solid state
Positioning Integrated GPS sensor Integrated GPS sensor Integrated GPS sensor
USB 2 2 2
Mobile connectivity (optional) 3G / 4G 3G / 4G 3G / 4G
GSM voice connectivity - - Microphone input Amplified audio output (up to 10W)
More connectivity EthernetWiFi 802.11b/g EthernetWiFi 802.11b/g EthernetWiFi 802.11b/g
Other ports 1 x RS2321 x RS4852 x CAN 1 x RS2321 x RS4852 x CAN 2 x RS232-RS4853 x CAN12 x Digital inputs (@24V)4 x Digital outputs (@24V)
Dimensions 175x104x33 175x104x33 185x167x53
Weight 0.28kg 0.28kg 1.9kg
Power supply 9-32VDC 9-32VDC 9-32VDC
Consumed power 1500mA @ 24V 1500mA @ 24V 1500mA @ 24V
Operating temperature 0°C - 60°C 0°C - 60°C 0°C - 60°C
